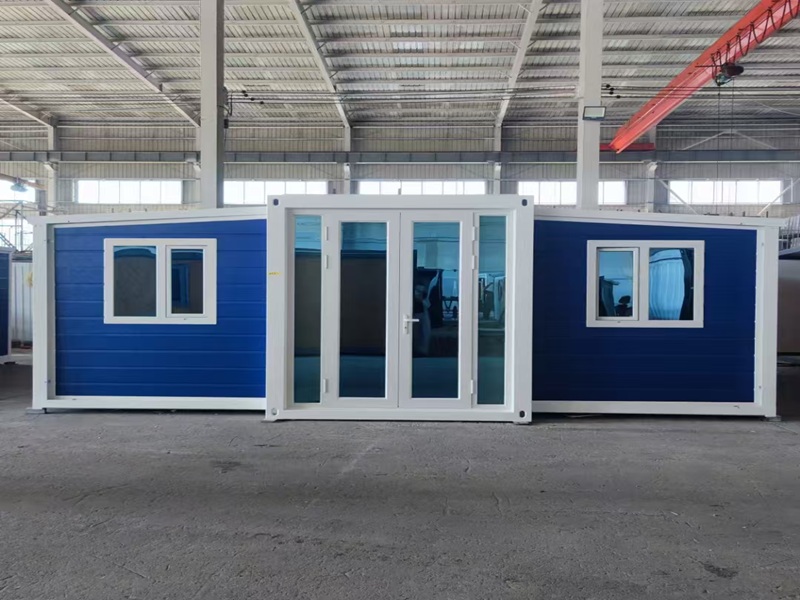

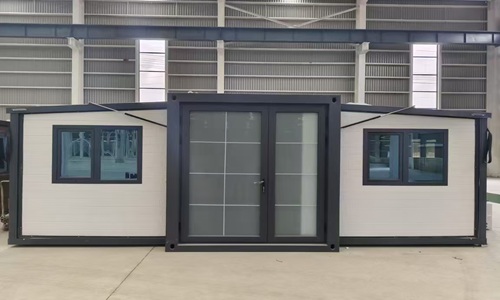

An expandable container house is a modular building solution developed from standard shipping container structures. In its transportation state, it maintains a compact form, making it highly efficient for sea and land transport. Once delivered to site, the unit can be expanded horizontally or in multiple directions, significantly increasing usable interior space and maximizing space efficiency.
The structure typically features a high-strength steel frame combined with environmentally friendly composite wall panels, offering excellent thermal insulation, heat resistance, and corrosion protection. It is designed to perform reliably in a wide range of climates. Pre-installed electrical and plumbing systems are commonly integrated, with support for air conditioning, sanitary facilities, and smart home systems, allowing the unit to be ready for use once connected to power.
With advantages such as lower transportation costs, rapid installation, and reusability, expandable container houses are widely used for temporary or semi-permanent offices, construction site accommodations, emergency housing, commercial display units, and hospitality applications, providing a modern, flexible, and sustainable building solution.
商品编号 :
CN099产品来源 :
China颜色 :
optional交货时间 :
7-15 Working days after deposit.品牌 :
ChaYo
Easy Folding & Quick Setup
Transported compactly, unfolded into a full cabin in just 2–4 hours.
Strong & Durable Structure
Made from galvanized steel and insulated wall panels for long-lasting protection.
Comfortable Interior Design
Includes insulation, ventilation, lighting, power system, and optional furnishings.
Portable & Reusable
Designed for multiple relocations and repeated use without damage.
Eco-Friendly & Energy-Efficient
Built with recyclable materials and energy-saving systems.
Module

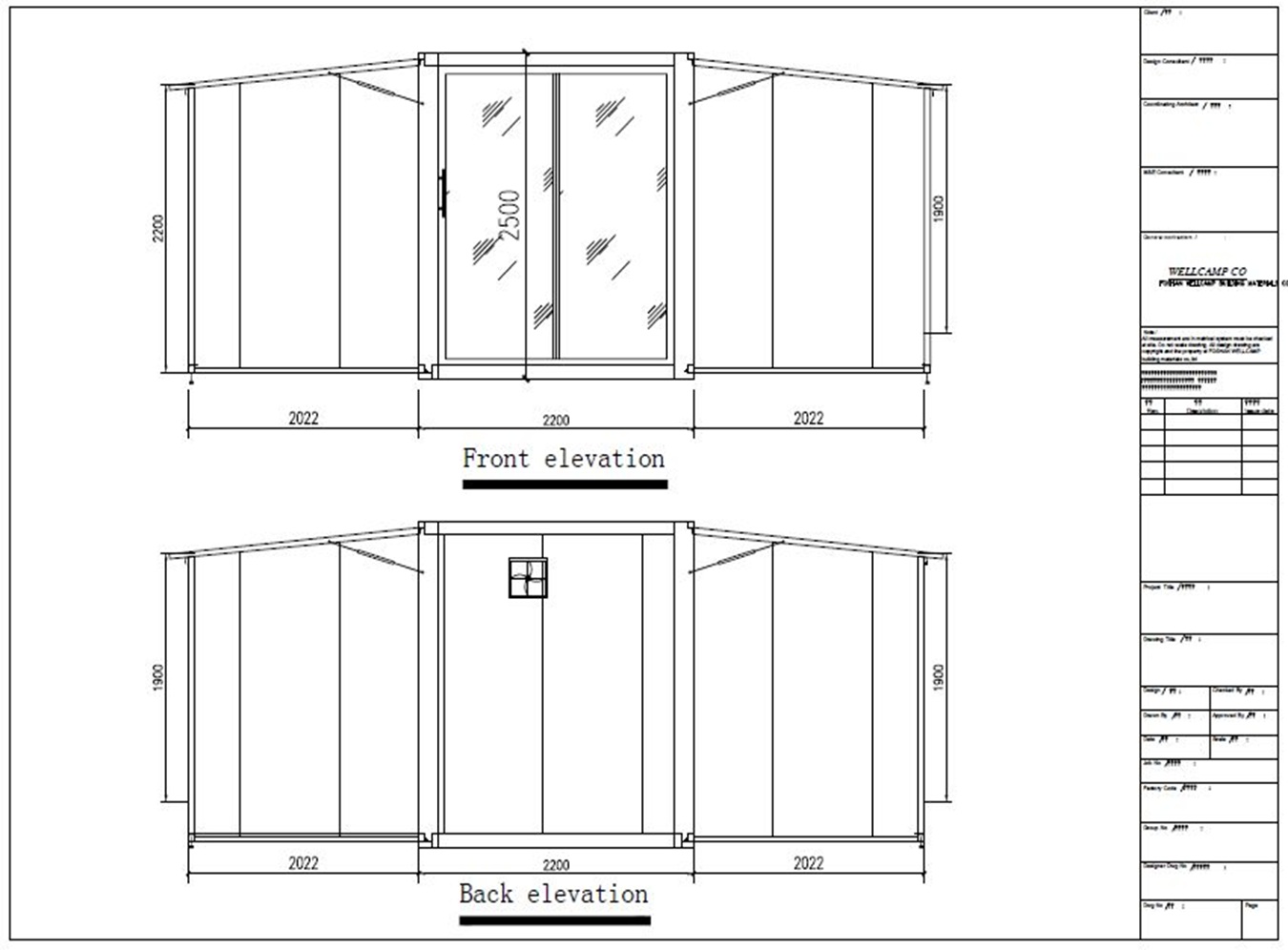

Technical Specifications (Standard Models)
| Feature | Basic Residential Model | |||||
| External Dimensions (L*W*H) | 5900*2200*2480mm | |||||
| Internal Dimensions (L*W*H) | L5640*W6140*H2240 | |||||
| Dimensions when unfolded (L*W*H) | 5900mm*6300mm*2480mm | |||||
| Main Frame | Ground Main Beam: Specification 80mm x 100mm square steel, galvanized beam 2.75mm thick; | Ground Secondary Beam: Specification 80mm x 40mm x 1.5mm thick galvanized square tube; | Pillars: 210mm x 150mm, 2.3mm thick galvanized steel; | Roof Main Beams: 80mm x 100mm square steel, 3.0mm thick galvanized steel | Roof Purlins: 40mm x 40mm x 1.2mm thick, 20mm x 40mm x 1.2mm square tubing * 2 pieces | |
| Marco lateral | Concave Tube 1.2mm Specialized Tube | |||||
| Surface treatment | Electrostatic powder coating with baking finish ≥80 Hm | |||||
| Flame-retardant polystyrene board | Color-coated EPS composite panel with a thickness of 75mm and width of 950mm. Color-coated steel sheet thickness: 0.3mm. Color: white-gray. Features a smooth, embossment-free surface on both sides. Insulation board with a density of 10kg/m³ and flame-retardant properties. | |||||
| Roof panel | 50mm thick EPS composite panel with 0.3mm steel plate. Corrugated sheet added to the top for secondary waterproofing, 0.3mm thick. | |||||
| Insulation layer | EPS thickness: 50mm Density: 10kg/m³ Flame retardant | |||||
| Ceiling | 200 Series Profiled Clip-On Panels | |||||
| Structural panel | The main floor consists of 18mm magnesium oxide board; The side floors are made of 18mm plywood. |
Material
Relying on ChaYo's own factory, we provide you with a one-stop cooperation experience for the entire chain, and our core advantages are fully demonstrated with peace of mind:
• High cost performance option: Balancing product quality and cost control, we create a cost-effective solution for you that is of high quality and reasonable price;
• Customized and precise matching: Deeply listen to your needs, customize products and services according to your needs, and accurately match your personalized scenario;
• 1v1 exclusive follow-up: equipped with dedicated liaison personnel, from ordering, production to delivery, one-on-one tracking throughout the process, allowing you to keep track of progress in real time;
• Using fire-resistant, anti-corrosion, and insulation materials that meet standards, with durable, waterproof, and seismic performance
Application
FAQ
Q.How many sets can be loaded in a 20 foot container?
A.A 20 foot container can hold 3 sets.
2.What is the structure made of?
2.The cabin usually adopts a galvanized steel frame and insulated sandwich panels (EPS, rock wool, or glass wool) for walls and roof, ensuring durability, fire resistance, and heat insulation.
3.What materials are used in the house structure?
3.The main frame is made of galvanized steel, and the walls and roof are made from insulated sandwich panels (EPS, rock wool, or PU). These materials provide good durability, insulation, and fire resistance.
4.Is it easy to transport?
4.Yes. The folding design allows the house to be packed into a standard container size, which saves on shipping costs and makes it suitable for long-distance transport.
5.Can the cabin be moved to another site after use?
5.Yes. The cabin can be folded back and relocated multiple times. It’s ideal for temporary or mobile projects such as construction sites or seasonal housing.
这是一款模块化房屋产品，采用可扩展设计，核心规格分别为 20 英尺、30 英尺和 40 英尺。它强调高性价比、快速部署和灵活配置。产品线涵盖从基本型号到完整生活解决方案，满足包括住宅、度假租赁、临时建筑和办公空间在内的各种应用需求。
细节
宽敞的模块化住宅，高效的全球运输这 30英尺可扩展集装箱房屋 是一种用途非常广泛的 模块化预制集装箱房屋 专为需要比 20 英尺单元更大的居住空间，同时又希望保持经济实惠的交通运输的客户而设计。 这款车型采用可折叠结构、耐用钢架和可定制内部空间，因此被广泛用作…… 便携式集装箱房屋, 可扩展预制房屋， 和 模块化住房解决方案 适用于全球住宅和商业项目。
细节
宽敞的74平方米可扩展居住空间展开尺寸：6300 × 11800 × 2480 毫米可用面积：约74平方米（796平方英尺）内部高度：2480 毫米展开后，这款40英尺可折叠集装箱房屋可提供近74平方米的内部空间——相当于一套小型公寓。其布局可包含多个卧室、客厅、厨房和浴室，使其成为预制家庭住宅、模块化别墅或可扩展的永久居住集装箱房屋的理想之选。 标准住宅的层高确保了与传统住宅类似的舒适度和自然通风。
细节
我们的 双层可扩展集装箱房屋 它采用与我们的单层房屋相同的优质材料和结构标准建造，但在不增加土地占用的情况下，提供了更多的居住和功能空间。 该模块化解决方案专为住宅、商业、酒店和办公用途而设计，兼具灵活性、耐用性和现代建筑美学。与市面上许多预制房屋解决方案不同，我们的两层可扩展集装箱房屋沿用了与单体房屋相同的结构系统，包括：高强度镀锌钢框架，双层加固承重柱，保温墙板，防水防腐处理，双层玻璃铝合金门窗该结构经过专门设计，可实现垂直扩展，从而确保长期稳定性和安全性。
细节
随着模块化房屋在住宅和轻型商业市场日益普及，结构优化和建筑细节设计变得愈发重要。屋顶一体化可扩展集装箱房屋在标准可扩展集装箱结构的基础上，引入了倾斜的屋顶结构，不仅提升了视觉美感，还显著改善了排水性能。 这款升级版车型保留了与基础可扩展集装箱房屋相同的核心结构系统、隔热性能和室内装修能力，同时呈现出更具住宅风格的建筑外观。
细节

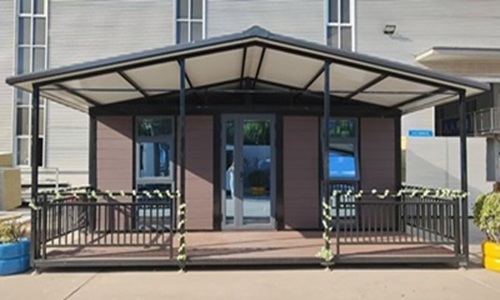

随着模块化住宅从纯粹的功能性结构向以生活方式为导向的解决方案转变，户外空间的融合已成为一个关键因素。这款带集成露台的可扩展集装箱住宅引入了一个前甲板平台，将可用生活空间延伸至室内之外，实现了室内舒适与户外休闲的无缝衔接。 该设计保留了标准可扩展集装箱系统的结构优势，同时增加了一个实用且美观的户外延伸部分。
细节
这 F700 可扩展集装箱房屋 是一款智能模块化建筑解决方案，旨在最大限度地利用空间、降低运输成本，并在各种应用场景中提供可靠的性能。凭借其创新的折叠结构，该单元可紧凑地折叠至仅 700 毫米厚，从而实现高效装载并显著降低运输成本。安装后，它可快速展开成一个尺寸为 4800 × 5900 × 2480 毫米的完整居住或工作空间，兼具舒适性和功能性。
